Dashboard View Widget

The Dashboard View widget (previously known as “Page View widget”) is used to add the published dashboard, or collection of dashboards, in a product that embeds this widget. The widget is meant to be used by the end users, who don’t need dashboard creation ability provided in the Dashboard Builder widget. Dashboards may contain embedded reports and web forms, as well as other static content.

Like all widgets, this widget has an HTML tag, a launcher script, and a configuration object that needs to be added to the code of any page that embeds it and the necessary property values have to be provided for it to work properly.

Depending on whether a single, specific published dashboard needs to be embedded or all of the published dashboards, the code can be found in two different places:

• In order to embed all of the published dashboards, you can find and copy the necessary piece of code by going to the Dashboard Builder section of Qrvey Composer and clicking on the “Embedding Options” button in the top right corner of the page and selecting the “Embed Dashboard View” option.



This will open a dialog with the necessary code, including the “domain” and property values. You can copy the code from here and include it in your application. You have to provide the unique API key value.

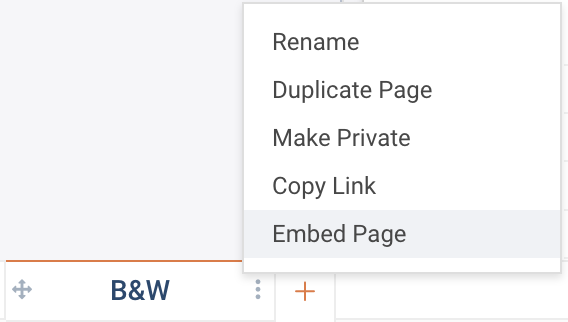

• To embed an individual dashboard, you will also need the page_id value. For this use case you can navigate to the desired page and click on the three-dot menu of the page at the bottom of the screen and select the “Embed Page” option. The code will be very similar to the previous case but include the page_id property of the selected page.



The building blocks of the code are explained below.

HTML Tag And Launcher

The HTML tag for this widget is:

<qrvey-end-user settings=...>

You can use the following script to launch this widget:

<[your-widget-url]/widgets-launcher/app.js>

Configuration Object

The table below provides general information about each property of this widget’s configuration object, along with a description of the expected value. The Required column indicates whether the property is required for the configuration object to work properly.

Property	Value	Required
api_key	String, secret identification token to access the application.	Yes
app_id	String, ID of the Qrvey application containing the web form.	Yes
domain	String, Qrvey Core URL.	Yes
group_list	Array<String>, collection of IDs/names of the groups created in User Management.	No
page_id	String, ID of one page to visualize it: all auth process is still required if the configuration exists.	No
userFilters	Array<Object>, collection of custom filters that the system will apply to the visualized data. Please see Working With Filters in Embedded Scenarios for more details on how to create a filter object.	No
filter_panel_default_view	String, Decides the default state of the side filter panel, if it’s been added to the view. It can be set to ‘open’ or ‘closed’. The default value is closed.	No
fit_panel_button	Boolean, Show the fit to panel button on the panels. Default value is true.	No
personalization	Object, JSON object to configure and overwrite the default personalization settings. Please see the section about Configuring End User Personalization for more details.	No
styles	Object, JSON object configuring style options that can be used to override the default styles, allowing for while-labeling the widget. Please see the Overriding the Default Styles section for more details.	No
featurePermission	Object, JSON object to configure which features are or are not available in the widget. Presently it only supports showing and hiding of the pages bar, where the pages appear as tabs at the bottom of the widget.* The object’s structure is: featurePermission:{   pagesAndApplication{    hidePagesBar: true // or false (default)   } }	No

Note: Refer to the FAQs if you don’t know where to find any of the required configuration properties.

Hiding Features

Show or hide any feature you don’t require for your embedded use cases by setting a property to true or false which creates a customized version of the Dashboard Builder widget.

You can hide all the features mentioned in the table below If you set the Liteversion property to true.

widgetConfig = {
   domain: "DOMAIN",
   appid: "APP_ID",
   userid: "USER_ID",
   featurePermission: {
     liteVersion: true,
   },
}

If you want to hide all properties except a specific one, set the liteVersion feature to true and the exception you want to show to false. This will show only that specified property.

widgetConfig = {
   domain: "DOMAIN",
   appid: "APP_ID",
   userid: "USER_ID",
   featurePermission: {
     liteVersion: true,
     userManagement:{
       hideUserManagementTab: false
     }
   },
}

Property	Description	Type	Default	Required
featurePermission	Main property of this feature.	Object	N/A	No
navigation	Define navigation-related features that can be hidden	Object	N/A	No
hideNavigationTab	Hide the entry method to the navigation tab in the top bar of the widget	Boolean	false	No
userManagement	Define user management related features that can be hidden	Object	N/A	No
hideUserManagementTab	Hide the entry method to the user management tab in the top bar of the widget	Boolean	false	No
pagesAndApplication	Define pages and application-related features that can be hidden	Object	N/A	No
hidePublishAppButton	Hide button “Unpublish”/”publish application”	Boolean	false	No
hidePublishPageButton	Hide button “publish page”	Boolean	false	No
hideCopyPageLink	Hide the UI interfaces where the user can get the link of a page	Boolean	false	No
hideLaunchButton	Hide the button to access the page view	Boolean	false	No
hideCreateManagePages	Hide all options to create pages	Boolean	false	No
hidePageStatus	Hide Text “status”	Boolean	False	No
hidePagesBar	Hide bottom bar pages	Boolean	False	No
LiteVersion	Hide all elements that are managed by feature permissions	Boolean	false	No
canvas	Define canvas related features that can be hidden	Object	N/A	No
hideManageCanvas	Hide the following options: Grid, Responsive View, Discard Changes.	Boolean	false	No

Configuring End User Personalization

By default, the Dashboard View widget supports end user personalization for all authenticated users. Use the following guide to configure and override the default settings.

Note: End user personalization feature relies on the user being authenticated and needs the clientid property set for the logged-in user. The property’s value should represent a unique identifier for each end-user, as Qrvey uses it as a key to store any personalization made. Using the same clientid value for multiple end-users will result in the users’ personalized versions being overridden by each other. Please see the Embedding Widgets Using a Security Token property set for the logged-in user.

Property	Description	Type	Default	Required
enabled	Turn personalization on/off for end users. When disabled, all of the properties in the personalization object, other than the fit_panel_button property will be omitted.	boolean	true	No
add_filter	When set to true, all “add filter” buttons will be visible to allow users to create new filters from the filter modal, the filter panel, and filter interactivity page components.	boolean	true	No
edit_chart	Allow authenticated users to edit charts by clicking the “Edit” button in the panels' three-dot menu.	boolean	true	No
download_data	Allow users to download the page and panel data in CSV and PDF formats	boolean	true	No
edit_page	Allow authenticated users to go into edit mode, where the page builder widget will be displayed. Users will see an “edit page” icon in the floating three-dot menu.	boolean	true	No
remove_chart	Allow users to remove charts from the page, when in edit mode	boolean	true	No
rearrange_chart	Allow users to rearrange the chart panels, when in edit mode	boolean	true	No

Overriding the Default Styles

The styles object can be used to configure css settings of the Dashboard View widget, allowing the widget to be used in multi-tenant environments, and other white-labeling scenarios. All of the style properties listed in the following table have to be housed inside the pageView object, under styles like the following example:

        styles: {
          pageView: {
            canvasTextFontFamily: 'Roboto, sans-serif',
            canvasTextFontWeight: 'normal',
            canvasTextFontSize: '12px',
            canvasTextFontColor: 'blue',
            canvasTextBackgroundColor: 'white',
            canvasTextAlign: 'left'
          }
        }

All values are of string type and none are required.

Property	Values	Target
canvasButtonBackgroundColor	All CSS supported values (color names or Hex), '#000000', 'green', 'GREEN'	button
canvasButtonFontColor	All CSS supported values (color names or Hex), '#000000', 'green', 'GREEN'	button
canvasDatepickerFontFamily	Groups of values: 'Roboto, sans-serif' 'Georgia, serif' 'Palatino Linotype, Book Antiqua, Palatino, serif' 'Times New Roman, Times, serif' 'Arial, Helvetica, sans-serif' 'Arial Black, Gadget, sans-serif' 'Comic Sans MS, cursive, sans-serif' 'Impact, Charcoal, sans-serif' 'Lucida Sans Unicode, Lucida Grande, sans-serif' 'Tahoma, Geneva, sans-serif' 'Trebuchet MS, Helvetica, sans-serif' 'Verdana, Geneva, sans-serif' 'Courier New, Courier, monospace' 'Lucida Console, Monaco, monospace'	datepicker
canvasDatepickerFontColor	All CSS supported values (color names or Hex), '#000000', 'green', 'GREEN'	datepicker
canvasDatepickerIconSelectorsColor	All CSS supported values (color names or Hex), '#000000', 'green', 'GREEN'	datepicker
canvasValuelistFontFamily	Groups of values: 'Roboto, sans-serif' 'Georgia, serif' 'Palatino Linotype, Book Antiqua, Palatino, serif' 'Times New Roman, Times, serif' 'Arial, Helvetica, sans-serif' 'Arial Black, Gadget, sans-serif' 'Comic Sans MS, cursive, sans-serif' 'Impact, Charcoal, sans-serif' 'Lucida Sans Unicode, Lucida Grande, sans-serif' 'Tahoma, Geneva, sans-serif' 'Trebuchet MS, Helvetica, sans-serif' 'Verdana, Geneva, sans-serif' 'Courier New, Courier, monospace' 'Lucida Console, Monaco, monospace'	valuelist
canvasValuelistFontColor	All CSS supported values (color names or Hex), '#000000', 'green', 'GREEN'	valuelist
canvasValuelistIconSelectorsColor	All CSS supported values (color names or Hex), '#000000', 'green', 'GREEN'	valuelist
canvasTextFontFamily	Groups of values: , sans-serif' 'Georgia, serif' 'Palatino Linotype, Book Antiqua, Palatino, serif' 'Times New Roman, Times, serif' 'Arial, Helvetica, sans-serif' 'Arial Black, Gadget, sans-serif' 'Comic Sans MS, cursive, sans-serif' 'Impact, Charcoal, sans-serif' 'Lucida Sans Unicode, Lucida Grande, sans-serif' 'Tahoma, Geneva, sans-serif' 'Trebuchet MS, Helvetica, sans-serif' 'Verdana, Geneva, sans-serif' 'Courier New, Courier, monospace' 'Lucida Console, Monaco, monospace'	textbox
canvasTextFontWeight	All CSS supported values (names of numbers)
'bold', 'bolder', 200, 400	textbox
canvasTextFontSize	All CSS supported values '10px', '10em', '10rem', '10%', 'large', 'small'	textbox
canvasTextFontColor	All CSS supported values (color names or Hex), '#000000', 'green', 'GREEN'	textbox
canvasTextBackgroundColor	All CSS supported values (color names or Hex), '#000000', 'green', 'GREEN'	textbox
canvasTextAlign	right, 'center', 'left'	textbox
canvasImageAspect	‘cover’, ‘contain’, ‘fill’	image
navigationBackgroundColor	All CSS supported values (color names or Hex), '#000000', 'green', 'GREEN'	navigation bar
navigationElementsColor	All CSS supported values (color names or Hex), '#000000', 'green', 'GREEN'	navigation bar
tabsBackgroundColor	All CSS supported values (color names or Hex), '#000000', 'green', 'GREEN'	tabs bar
tabsFontColor	All CSS supported values (color names or Hex), '#000000', 'green', 'GREEN'	tabs bar
tabsBorderColor	All CSS supported values (color names or Hex), '#000000', 'green', 'GREEN'	tabs bar
tabSize	All CSS supported values'10px', '10em', '10rem', '10%'	tabs bar
selectedTabBarColor	All CSS supported values (color names or Hex), '#000000', 'green', 'GREEN'	tabs bar
canvasBackgroundColor	All CSS supported values (color names or Hex), '#000000', 'green', 'GREEN'	page
pageViewButtonBackgroundColor	All CSS supported values (color names or Hex), '#000000', 'green', 'GREEN'	floating button (bottom right)
pageViewButtonIconColor	All CSS supported values (color names or Hex), '#000000', 'green', 'GREEN'	floating button (bottom right)

Events

The widget supports custom events to update keys of the configuration, you can dispatch an event using your own user interface to modify the behavior.

• atApplyUserFilters: Enables changes to the “builderFilters” property - the expected value for this property is a reduced version of the filter object. This property is a collection of objects that includes:
  • Operator: defines which operation will be performed with the expressions.
  • Expressions: a collection of objects that contains the questions/column reference, the type of operation applied to the questions, and the values that will be used for filtering.

Sample

The following sample shows the way this widget is used in an HTML page. Please note, that the example may not include the non-required properties of the configuration object.

You can copy and paste this code to your application, after replacing the red values with your own valid values, in order to see the embedded widget in action.

<qrvey-end-user settings="config"></qrvey-end-user>

<script>
var config = {
    "api_key": "<API_KEY>", // your API key
    "app_id": "<APP_ID>", // your app_id
    "domain": "https://your_qrvey_domain", // your domain
    "group_list": ["Admin", "oJn4Cr_yV", ...], //your group list, if any (this is optional)
    "page_id": "<PAGE_ID>", // the id of the page that you want in the view. All pages in navigation will be included, if this is omitted.
    "userFilters": { "filters": [
                    {
        "operator": "AND",
        "expressions": [
        {
            "questionid": "aQc13F",
                "validationType": "EQUAL",
            "value": ["January"]
}
]
}
        ]
    } // your filters, if any, can be added like this.
}
</script>


<!-- your launcher js link (replace with your js link) -->
<script type="text/javascript" src="https://<WIDGETS_URL>/widgets-launcher/app.js"></script>
